# Title Team Members TA Documents Sponsor
5 Mesh Network Positioning System
Noah Breit
Peter Giannetos
Michael Gamota design_document1.pdf
final_paper1.pdf
grading_sheet1.pdf
presentation1.pdf
proposal1.pdf
### Team Members
- Peter Giannetos (PG19)
- Noah Breit (NHBREIT2)

# Abstract
Create a wireless positioning system of meshed stationary nodes that is able to track moving nodes over a predefined area at long ranges in excess of 1 km. An inspiration for this project comes from high altitude amateur rocketry where GNSS exclusive tracking systems are unable to maintain a lock at high velocities. However, this is not limited to rocketry and can be expanded to drone swarms or other general asset tracking.

_([Initial Idea Post](https://courses.grainger.illinois.edu/ece445/pace/view-topic.asp?id=76218))_

# Background
Our engineering team Spaceshot from the [Illinois Space Society](https://www.illinoisspacesociety.org/) is working towards being one of the first collegiate teams to build and launch a completely student designed vehicle 100km to the edge of space; Also known as the Kármán line.

A big challenge in achieving this goal is reliably validating altitude, because many commercial GNSS systems are not able to operate at those extreme conditions which is where the inspiration for this project is derived.

_(Spaceshot recently broke the University's 7-year standing altitude record in June of 2024, and is looking to do so again in the summer of 2025. [Kairos II Launch](https://www.youtube.com/watch?v=6WY3OQx-jNs))_

# Objective
The goal of this system is to lay the foundation for an alternative redundant positioning system that may one day be used to help verify vehicle altitude over long ranges. The scope of this project will not focus on achieving these long ranges, but the link budget appears feasible.

Instead, this project will focus on creating a proof of concept for lower altitude vehicles and as a general tracking system that can be used for many other applications beyond vehicle tracking.

## Other Potential Usages
- Drone tracking
- Warehouse asset & robotics tracking
- Car tracking

## Novelty Compared to GNSS
A large part of the novelty is that this system is not entirely reliant on GNSS satellites meaning it serves as a redundant backup solution for assets that require extra reliability. However, here are some other potential novelties compared to GNSS

- Indoors and/or outdoor usage
- Different frequency band than GPS (2.4GHz vs 1.57GHz)*
- Faster update rate than typical consumer GPS (+10Hz)
- Higher velocity tracking
- High velocity tracking**

*_This helps de-conflict with Iridium usage which has been shown to sometimes interfere with GPS signals._

**_The system is most likely able to track higher velocities than consumer grade GNSS, but for the purposes of a demo we won't be able to test that in class. However, we may be able to test fly this system with our RSO in ~April._


# System Overview

## Key Points
- Anchor nodes have a stationary predetermined known location via GNSS or other methods.
- Rover nodes have an unknown moving location and are the subjects of the tracking
- Anchor nodes with synchronized time use time division to sequentially ping rover nodes
- Distance from ToF data from each Anchor node is used to calculate position
- 2.4 GHz LoRa modulation is used as a carrier signal and the radio measures the"Time of Flight" between messages
- 915 MHz LoRa is used for command and control of the Anchor nodes and to relay information between their mesh network
- Each node also may have WiFi/Bluetooth connectivity for relaying data to the user
- Each node has a battery charger circuit for charging LiPo batteries
- Anchor nodes have a DC in that can be used for solar panels or other power sources in extended operation modes

### Diagrams
- [Rover Node](https://drive.google.com/file/d/1s-36r-JjqxyTw7y8X974gufuxaq0_UOH/view?usp=sharing)
- [Anchor Node](https://drive.google.com/file/d/1r33J0ESABEdzihPbGCJ6SNQ7NYmtnM9_/view?usp=sharing)

### Schematics
- [Rover Node](https://drive.google.com/file/d/18-mt-91eqGyq5F5amYsRW0zK7k6PrgOG/view?usp=sharing)
- [Anchor Node](https://drive.google.com/file/d/1wgfl9TMk5EhXdlnkxCsD5ZM0D6RoE0kX/view?usp=sharing)

### Layouts
- [Rover Node Front](https://drive.google.com/file/d/177LjG0lPpOCkkIHr40mCEJd_GgLVCnwK/view?usp=sharing)
- [Rover Node Back](https://drive.google.com/file/d/1zS2saVFtNqWhWLpZFaUtUVLBXwYDhPUr/view?usp=sharing)
- [Anchor Node Front](https://drive.google.com/file/d/1umoRkIO3XNXMvPkvjQ44fK_oXh8rU63C/view?usp=sharing)
- [Anchor Node Back](https://drive.google.com/file/d/1g0U6Ht-ASRbU-8QZHsjqA0HMhdr1DFMh/view?usp=sharing)

_(All files have been shared with @illinois.edu emails)_

# High Level Success Requirements

- Perform 3D trilateration of a rover node
- Read and stream barometer, GNSS, and other data to another node for data logging
- Publish live data to a local WiFi network

# Final Demo Idea
Playing catch or with a tennis ball with a 3D plot for position visualization, or walking around a field with the rover node that is then displays it's position on a phone/computer.

## Intermediary Objectives:
- PCB bring up (Validate all subsystem work separately)
- Perform 1D trilateration of a rover node
- Perform 2D trilateration of a rover node
- Calibrate ranging radios

## Side Objectives:
_(For fun & only if we have time)_
- Create an antenna tracker connected to the mesh network to track the moving object (Good proof of concept for using high gain antennas for reaching 100km or for using cameras to record an asset. ([Adafruit Pan/Tilt Kit](https://www.adafruit.com/product/1967))

Assistive Chessboard

Robert Kaufman, Rushi Patel, William Sun

Assistive Chessboard

Featured Project

Problem: It can be difficult for a new player to learn chess, especially if they have no one to play with. They would have to resort to online guides which can be distracting when playing with a real board. If they have no one to play with, they would again have to resort to online games which just don't have the same feel as real boards.

Proposal: We plan to create an assistive chess board. The board will have the following features:

-The board will be able to suggest a move by lighting up the square of the move-to space and square under the piece to move.

-The board will light up valid moves when a piece is picked up and flash the placed square if it is invalid.

-We will include a chess clock for timed play with stop buttons for players to signal the end of their turn.

-The player(s) will be able to select different standard time set-ups and preferences for the help displayed by the board.

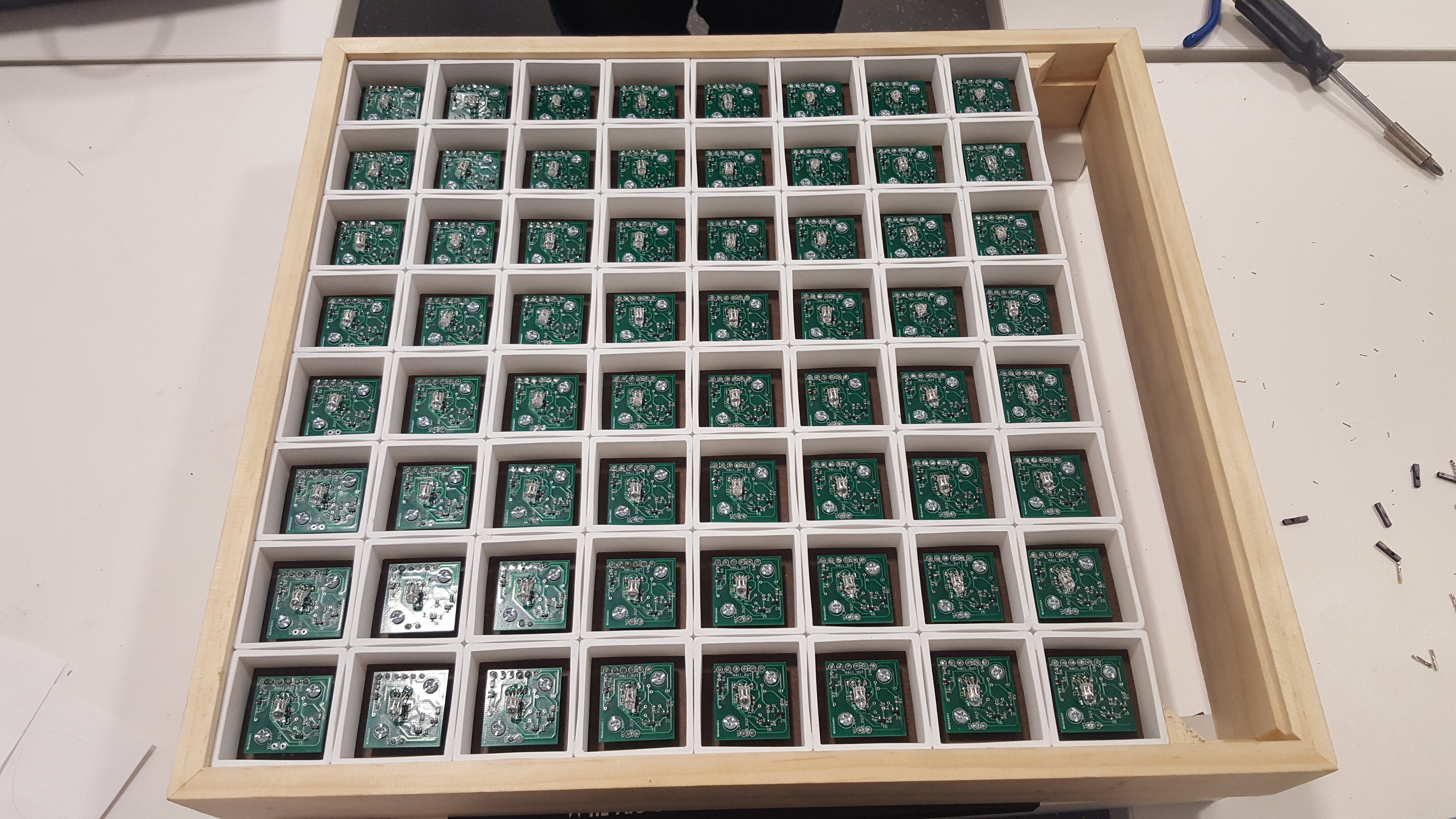

Implementation Details: The board lights will be an RGB LED under each square of the board. Each chess piece will have a magnetic base which can be detected by a magnetic field sensor under each square. Each piece will have a different strength magnet inside it to ID which piece is what (ie. 6 different magnet sizes for the 6 different types of pieces). Black and white pieces will be distinguished by the polarity of the magnets. The strength and polarity will be read by the same magnetic field sensor under each square. The lights will have different colors for the different piece that it is representing as well as for different signals (ie. An invalid move will flash red).
