Project

# Title Team Members TA Documents Sponsor
21 Door-Knocking Alarm for the Hearing Impaired
 Ajay Jayaraman
Ji Yoon Lee
Pax Kim
 Tianxiang Zheng design_document1.pdf
final_paper1.pdf
presentation1.pptx
proposal1.pdf
proposal2.pdf
video
Team Members:
- Ji Yoon Lee (jiyoon3)
- Ajay Jayaraman (ajaykj2)
- Pax Kim (pkim63)

# Problem

While there are plenty of alarms on the market that show some visual indicator (such as a light) when a doorbell is rung, there is a gap in the market for visual alarms for people with hearing impairments who do not have doorbells (for example, people living in dorms or even some apartment units, especially across college campuses).

# Solution

We propose an alarm that senses when someone is knocking on a door. The sensor will specifically be aiming to detect vibrations through the door. The differentiation between knocking vibrations and vibrations that may cause vibrations through the door (for example, lots of people running past the door in a dorm setting) will be determined by testing a range of vibrations classifiable as knocking (as it is likely that knocking on a door will cause stronger vibrations compared to walking past a door). This will require testing to get the exact range. After the alarm is triggered, it will then send an alert to the user’s phone, and also emit a bright light. The design should be easily attachable to most doors and be visible from the inside of the room.

# Solution Components
Parts:
- [Piezoelectric Sensor](https://www.amazon.com/DZS-Elec-Transducer-Microphone-Instrument/dp/B07TF5Q74Z/ref=sr_1_2?keywords=piezoelectric%2Bsensor&qid=1693962315&sr=8-2&th=1)
- LED
- ESP32-S3-WROOM (ESP32 Microcontroller)
- PCB
- 9V Battery

## Sensor Subsystem
This subsystem will consist of the Piezoelectric sensor picking up on vibrations from the door that the device is mounted on. The detected frequency of vibration will be filtered and compared to tested threshold and after it has been sent for processing by the microcontroller. The frequency range that we estimate to detect for a door knock is between 1.5 and 2.5 KHz ([source](https://www.researchgate.net/publication/273187267_Everyday_Life_Sounds_Database_Telemonitoring_of_Elderly_or_Disabled?_tp=eyJjb250ZXh0Ijp7ImZpcnN0UGFnZSI6Il9kaXJlY3QiLCJwYWdlIjoiX2RpcmVjdCJ9fQ)).

## LED and Phone Notification Subsystem

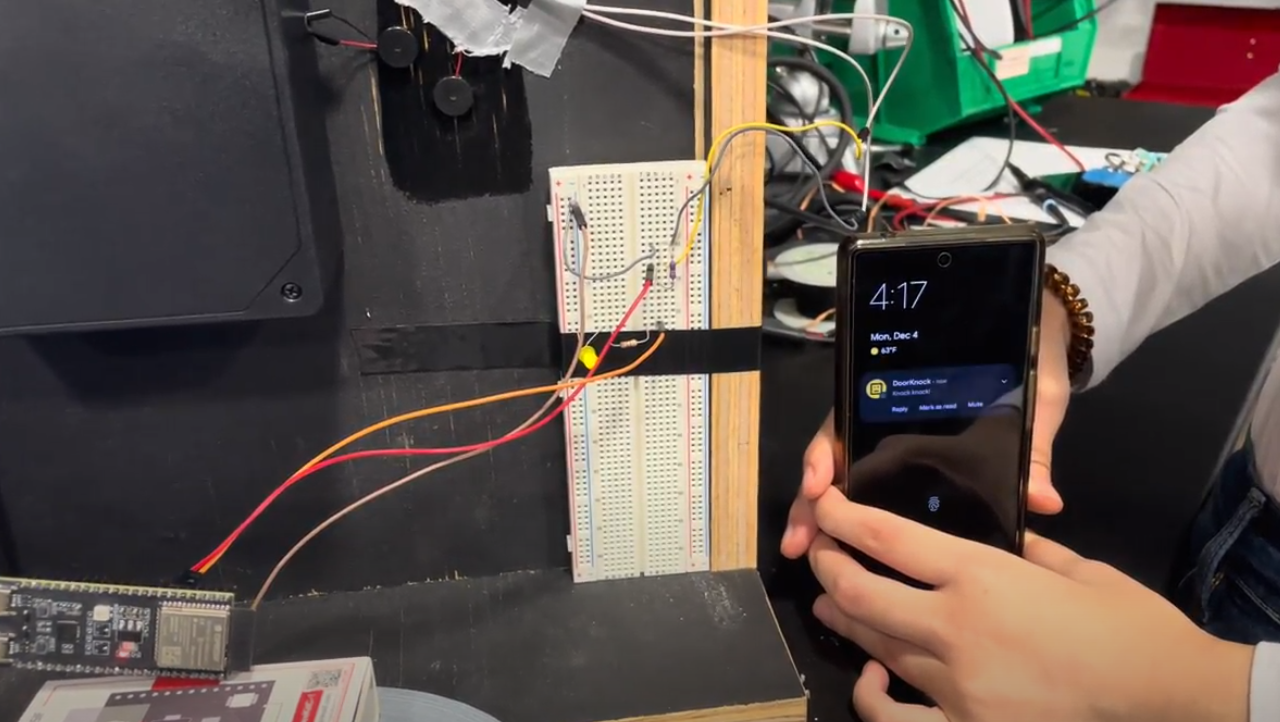

When the sensor subsystem detects knocking, the ESP32 will send a notification to the user’s phone. The ESP32’S Wi-Fi capabilities will allow it to send a message to the user through WhatsApp. In addition, it’ll also light up the LED’s to attempt to notify the user.

## Control Subsystem
The control subsystem consists of the microcontroller (ESP32) and its connections to other components (PCB) as the main controller of how the subsystems interact. The microcontroller is in charge of taking the frequency/vibration data from the sensor subsystem and comparing it to a tested and validated threshold, deciding whether or not to send notifications using the above notification subsystem.

## Power Subsystem
We plan to use 9V batteries to power the control, sensor, and notification subsystems. The batteries should allow for the product to be powered for an entire day without swapping the batteries.

# Criterion For Success
- The piezoelectric sensor should only pick up vibrations in the effective range (when there is knocking at the door) and not extraneous motion in the door, like wind or the door opening
- The product must be easily attachable to most standard door knobs, and should be secure enough so that it is not loose
- Should be powered sufficiently and for a long duration with solely battery power
- The user should receive a phone notification and the external LED should flash when the alarm triggers
