Computer vision algorithms relate image data to high-level descriptions. Although the techniques are generally similar to those in natural language, the objects being manipulated are in 2D or 3D.

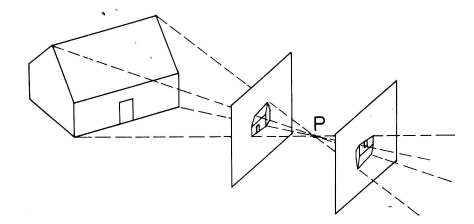

Cameras and human eyes map part of the 3D world onto a 2D picture. The picture below shows the basic process for a pinhole camera. Light rays pass through the pinhole (P) and form an image on the camera's sensor array. When we're discussing geometry rather than camera hardware, it's often convenient to think of a mathematical image that lives in front of the pinhole. The two images are similar, except that the one behind the pinhole is upside down.
from Rudolf Kingslake, Optics in Photography

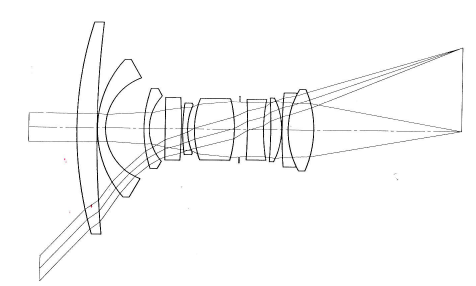

Pinhole cameras are mathematically simple but don't allow much light through. So cameras use a lens to focus light coming in from a wider aperture. Typical camera lenses are built up out of multiple simple lenses. In the wide-angle lens shown below, a bundle of light rays coming from the original 3D location enters the front element at the left and is gradually focused into a single point on the image at the right.
from Rudolf Kingslake, Optics in Photography
The human eye has a simpler lens, but also an easier task. At any given moment, only a tiny area in the center of your field of view is in sharp focus and, even within that area, objects are only in focus if they are at the depth you're paying attention to. The illusion of a wide field of view in sharp focus is created by the fact that your eyes constantly change their direction and focal depth, as your interest moves around the scene.
from Wikipedia
The lens produces a continuous image on the camera. Digital cameras sample this to produce a 2D array of intensity values. A filter array sends red, green, or blue light preferentially to each (x,y) location in the sensor array, in an alternating pattern. This information is reformatted into an output in which each (x,y) position contains a "pixel" with three color values (red, green, and blue). Modern cameras produce images that are several thousand pixels wide and high, i.e. much more resolution than AI algorithms can actually handle.
The human retina uses variable-resolution sampling. The central region (fovea) is used for seeing fine details of the object that you're paying attention to. The periphery provides only a coarse resolution picture and is used primarily for navigational tasks such as not running into tables and staying 6' away from other people.

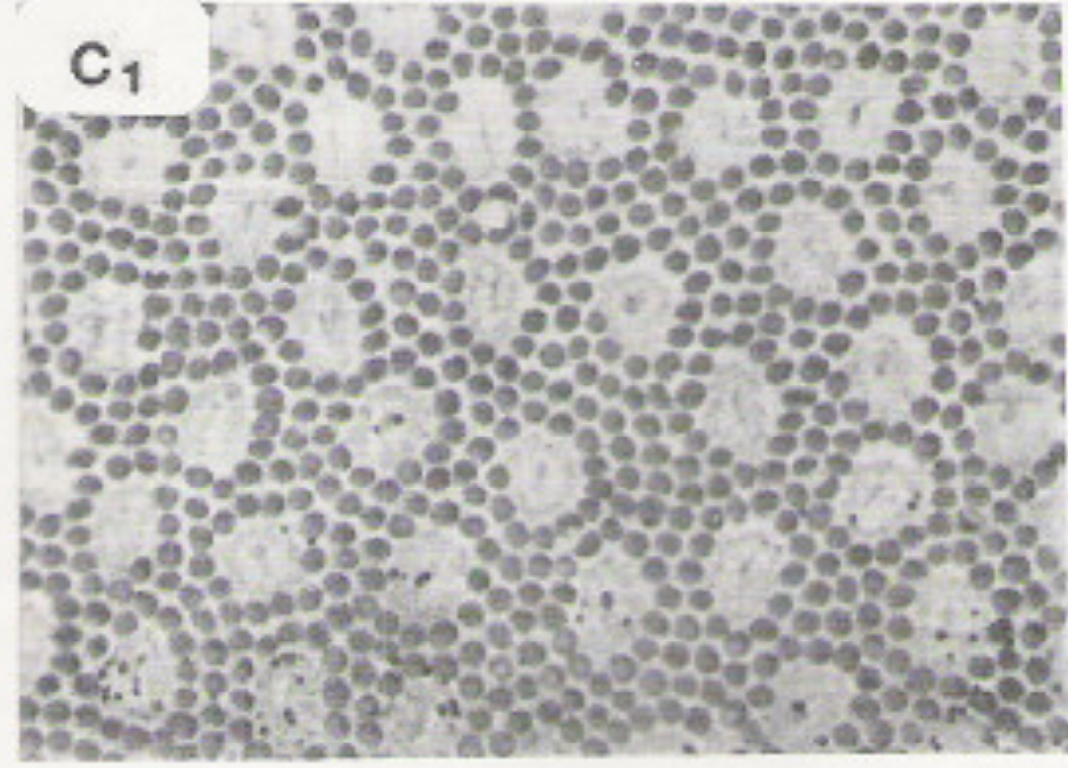

The lefthand photomicrograph below shows the pattern of cone cells in the fovea. The righthand picture shows the cones (large cells) in the periphery, interspersed with rods (small cells). Notice that the pattern is slightly irregular, which prevents aliasing artifacts. "Aliasing" is the creation of spurious low-frequency patterns from high-frequency patterns that have been sampled at too low a frequency.

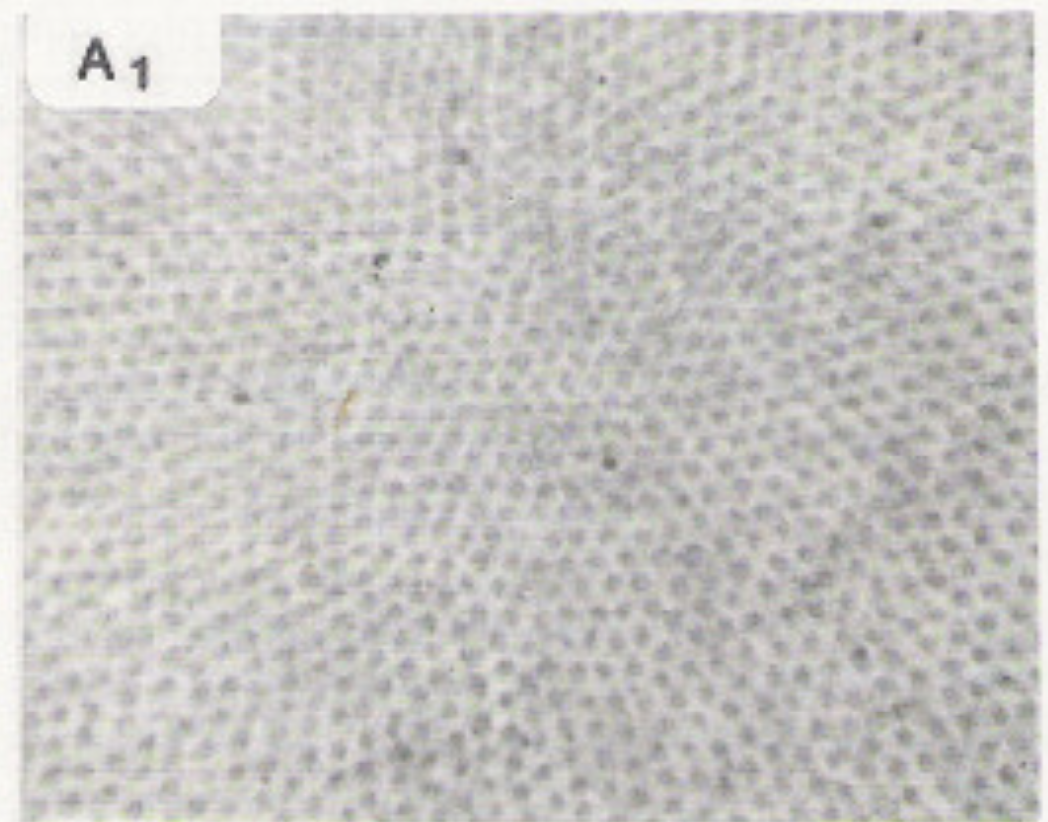

Photomicrographs
from John Yellott, "Spectral Consequences of Photoreceptor Sampling in the
Rhesus Retina"
Here is an example of aliasing artifacts (from Wikipedia) that happened when an image containing a repeating pattern was reduced to 62% of its original size by subsampling. One way to avoid such artifacts is to add some randomization to the subsampling pattern, as in the human eye (also used in archaeological digs). Another is to smooth the image slightly before reducing the resolution.

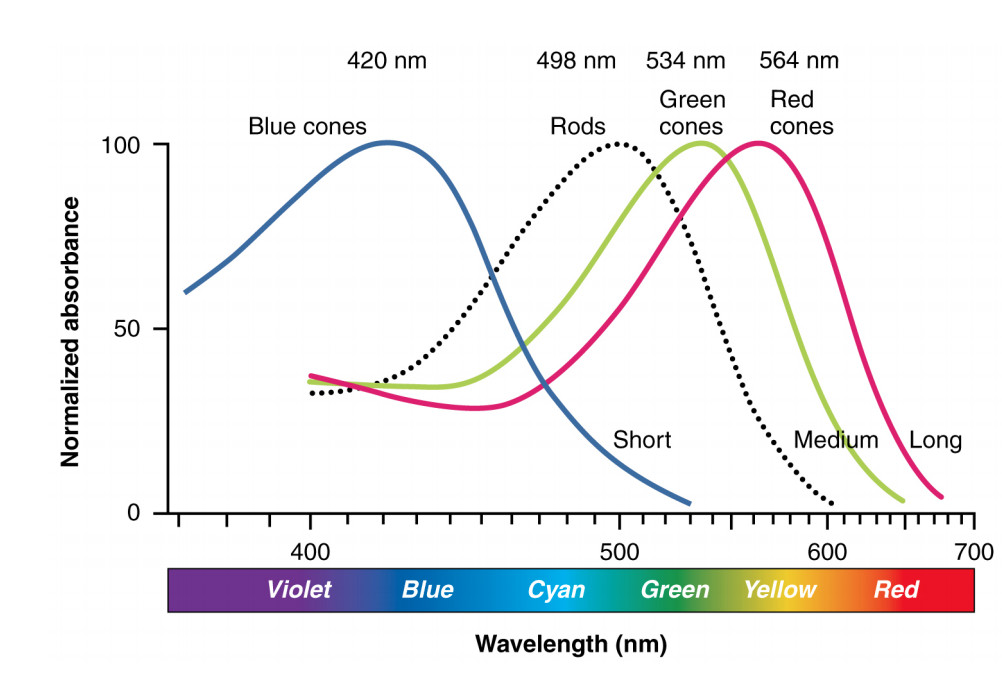

Each type of receptor responds preferentially to one range of light colors, as shown below. The red, green, and blue cones produce outputs similar to the ones from a digital camera, except that blue cones are much less common than red and green ones. The rods (only one color type) are used for seeing in low-light conditions.
Illustration from Anatomy & Physiology, Connexions Web site. http://cnx.org/content/col11496/1.6/, Jun 19, 2013.
Recognizing objects from pictures is difficult because "the same" object never actually has the same pattern of pixel values. Most obviously, we could rotate or translate the position of the object in the picture.
Objects such as stop signs are almost always seen with a particular orientation, except when they aren't.

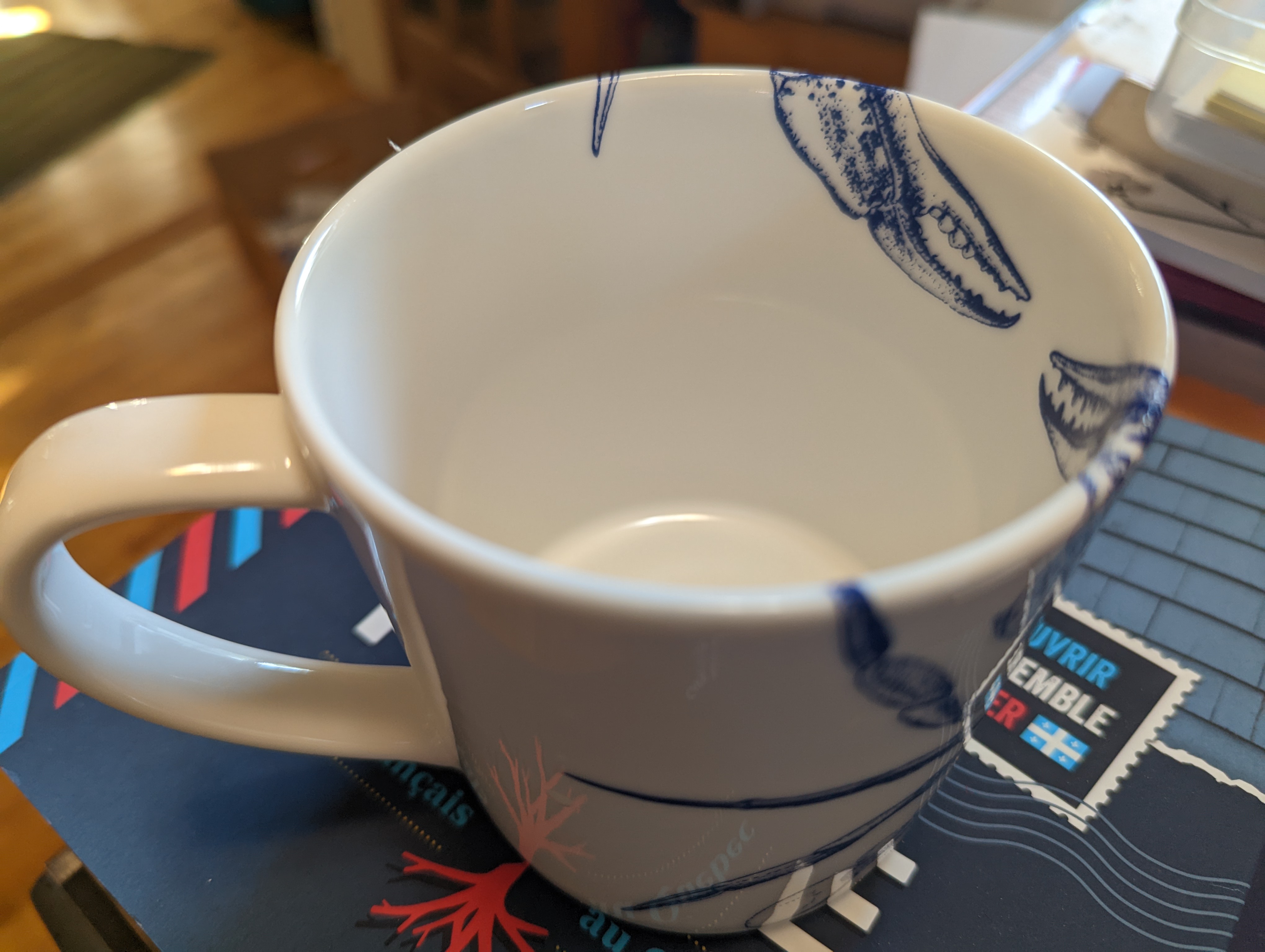

But, in addition, we might be seeing the object from two different viewpoints. This is what happens if I simply translate my camera toward a coffee mug. The closeup view in the second picture makes the top of the cup seem much wider than the bottom. This sort of distortion is why selfies look strange. Professional portraits are typically taken from further away. Depending on specifics of the camera lens, simply moving the object from the middle to the edge of the view can also cause its shape to be distorted.
Compare the two views of the lemon tree (in the planter) and the fig tree behind it. Pictures of complex objects can look very different from different viewpoints.
|
|
|
| lemon (front) fig (back) | closeup of lemon | closeup of fig |
Our ability to recognize objects can also be affected by what's around theme in the scene. For example, parts of objects can be "occluded," i.e. disappear behind other objects
A confusing background can make an object hard to see, even when there is nothing in front of it. The glasses are hard to see on the bright flower pattern and almost impossible to see on the stone texture.

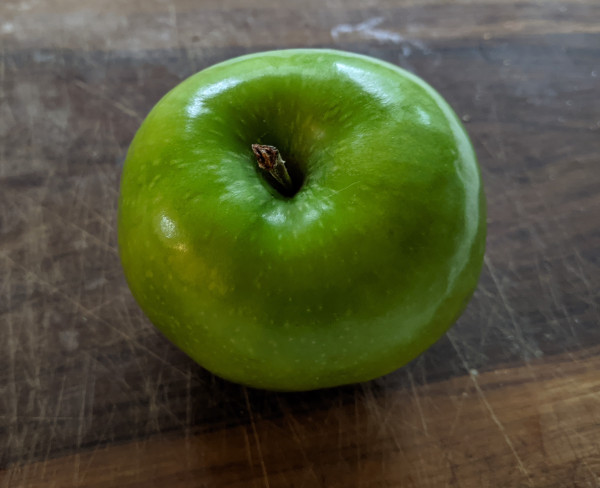

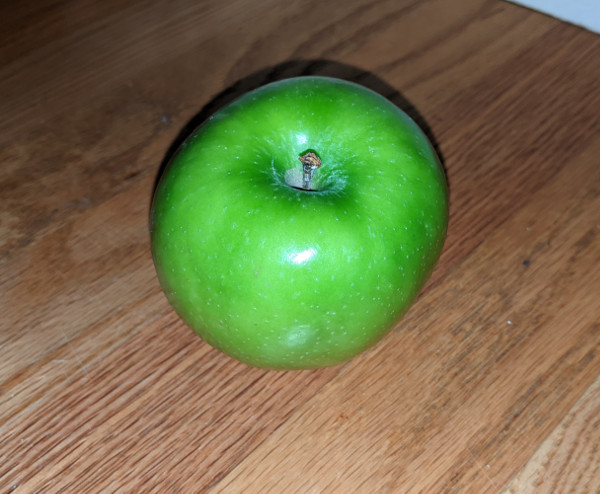

Differences in lighting can change the apparent color of an object, as well as the positions of highlights and shadows. The two pictures below are the same apple, photographed in different rooms. The apple looks like it's a different colors when the lighting changes. Also, the lefthand picture has a dark shadow above the apple, whereas the righthand picture (taken in more diffuse lighting) has a light shadow below the apple.

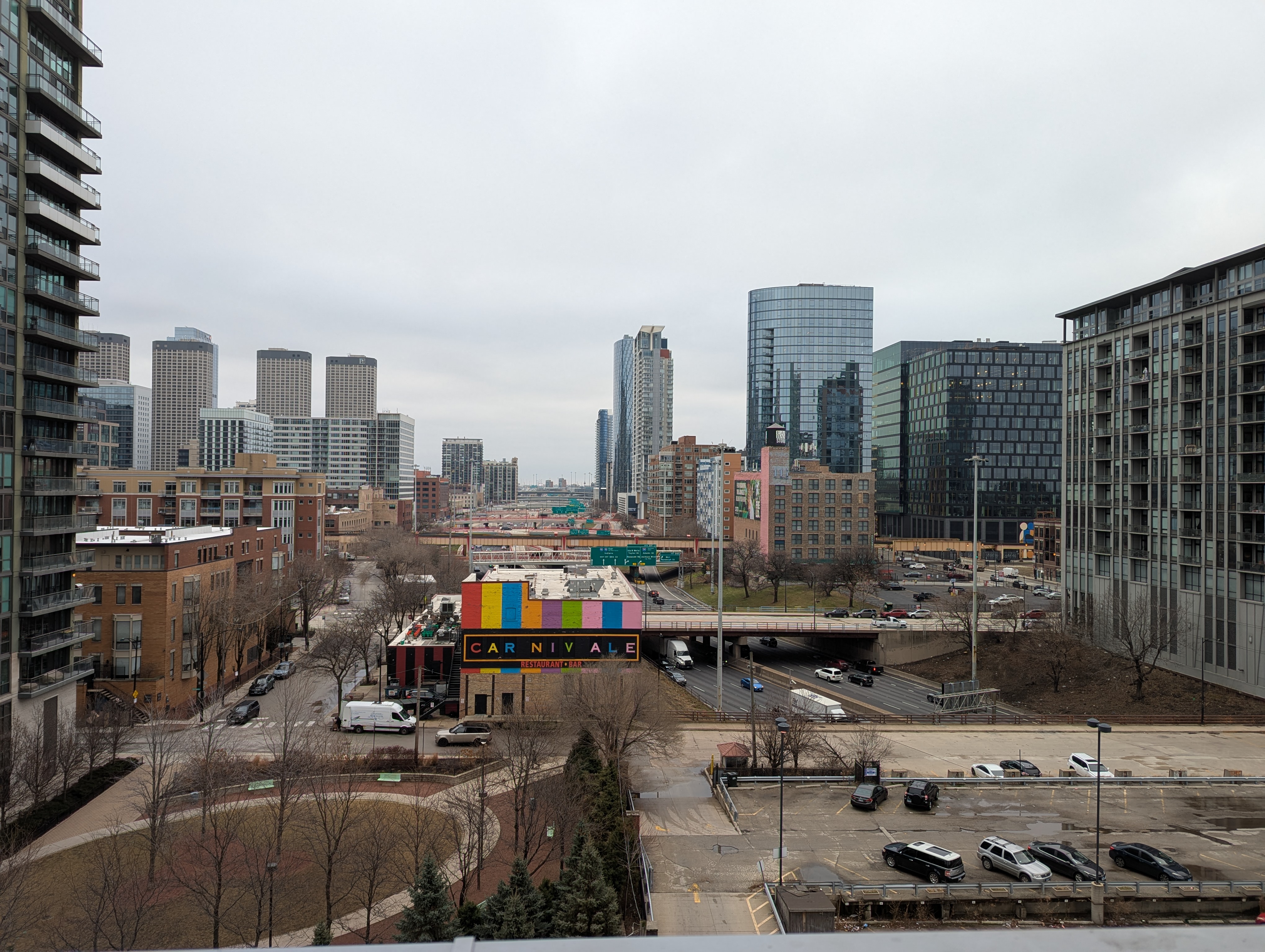

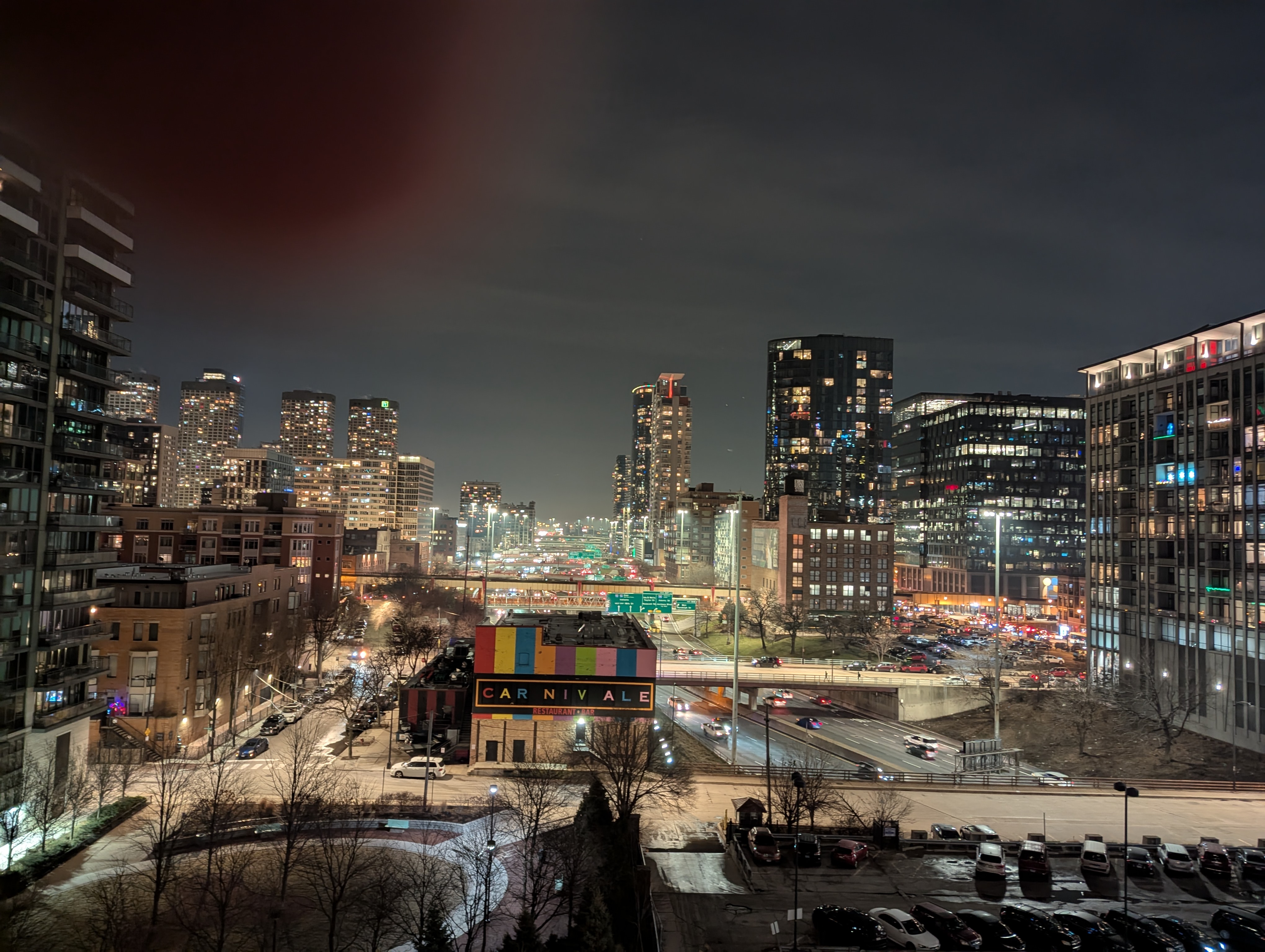

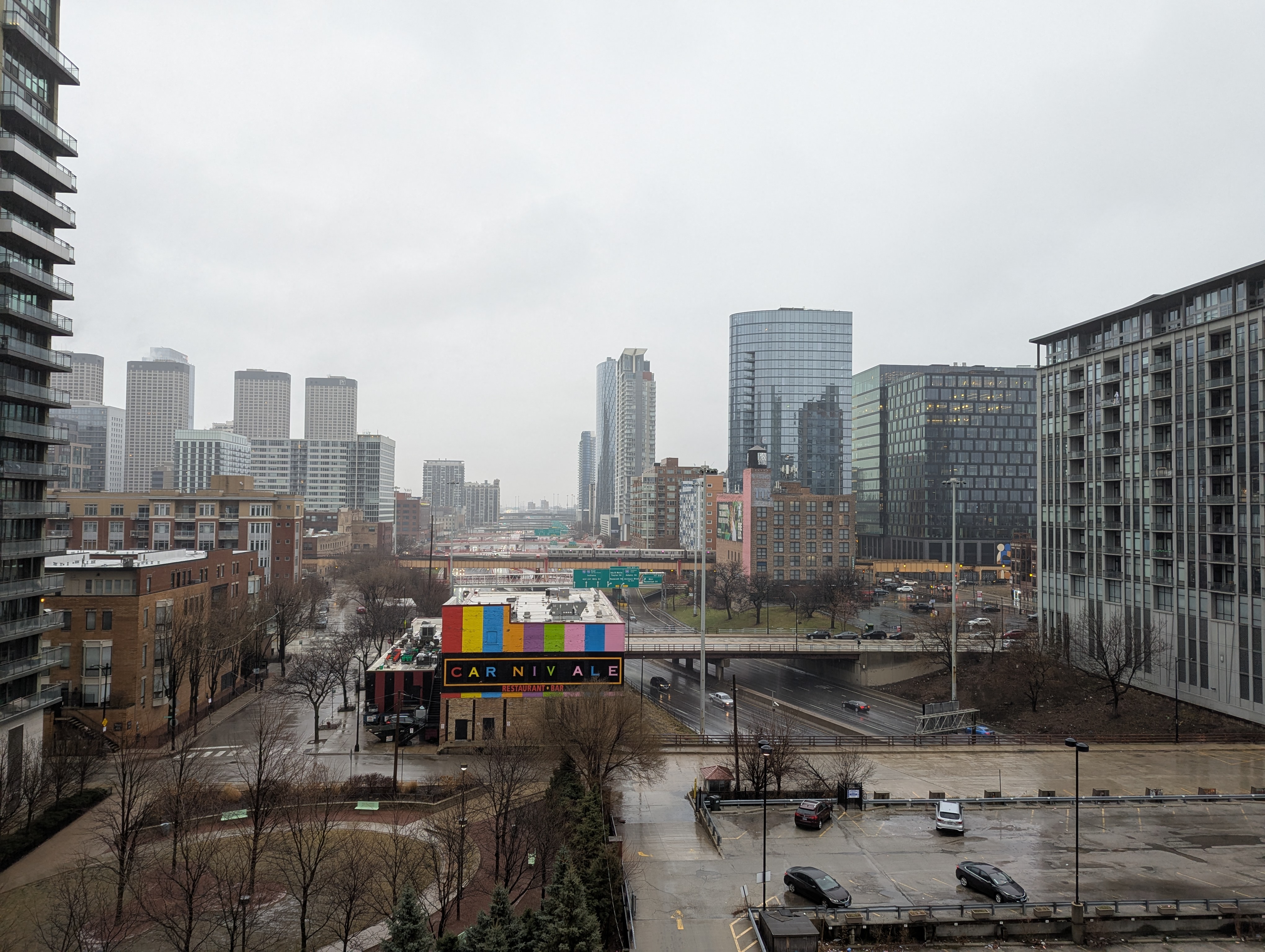

Here's three pictures of an area in Chicago, taken from almost the same position. The left one was taken in daylight, the middle one in light rain, and the right one at night.
When the eye or camera brings one part of a scene into focus, other parts may be thrown out of focus. This "accommodation" by the eye or camera is another reason why the same object can look different in two pictures.

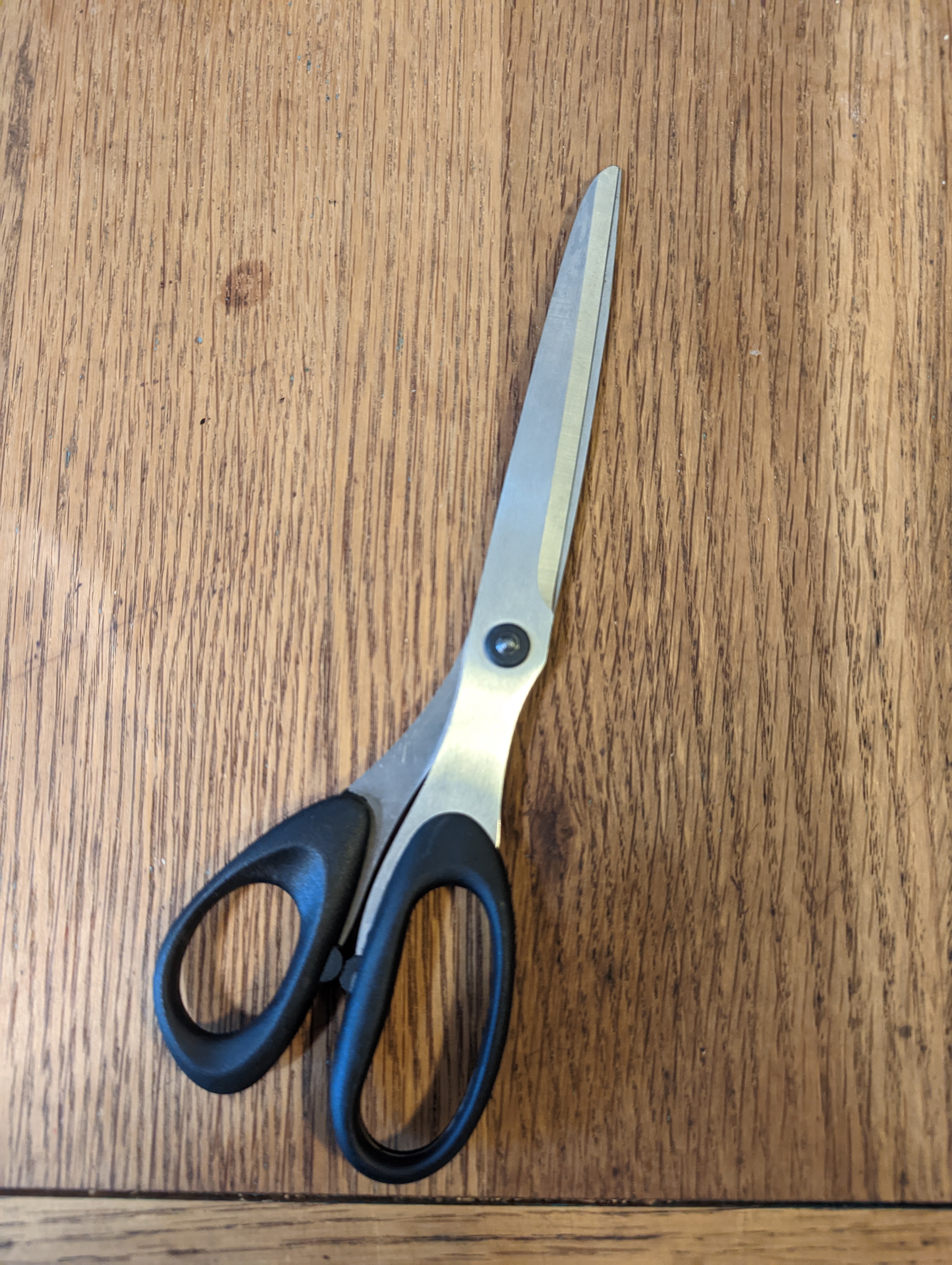

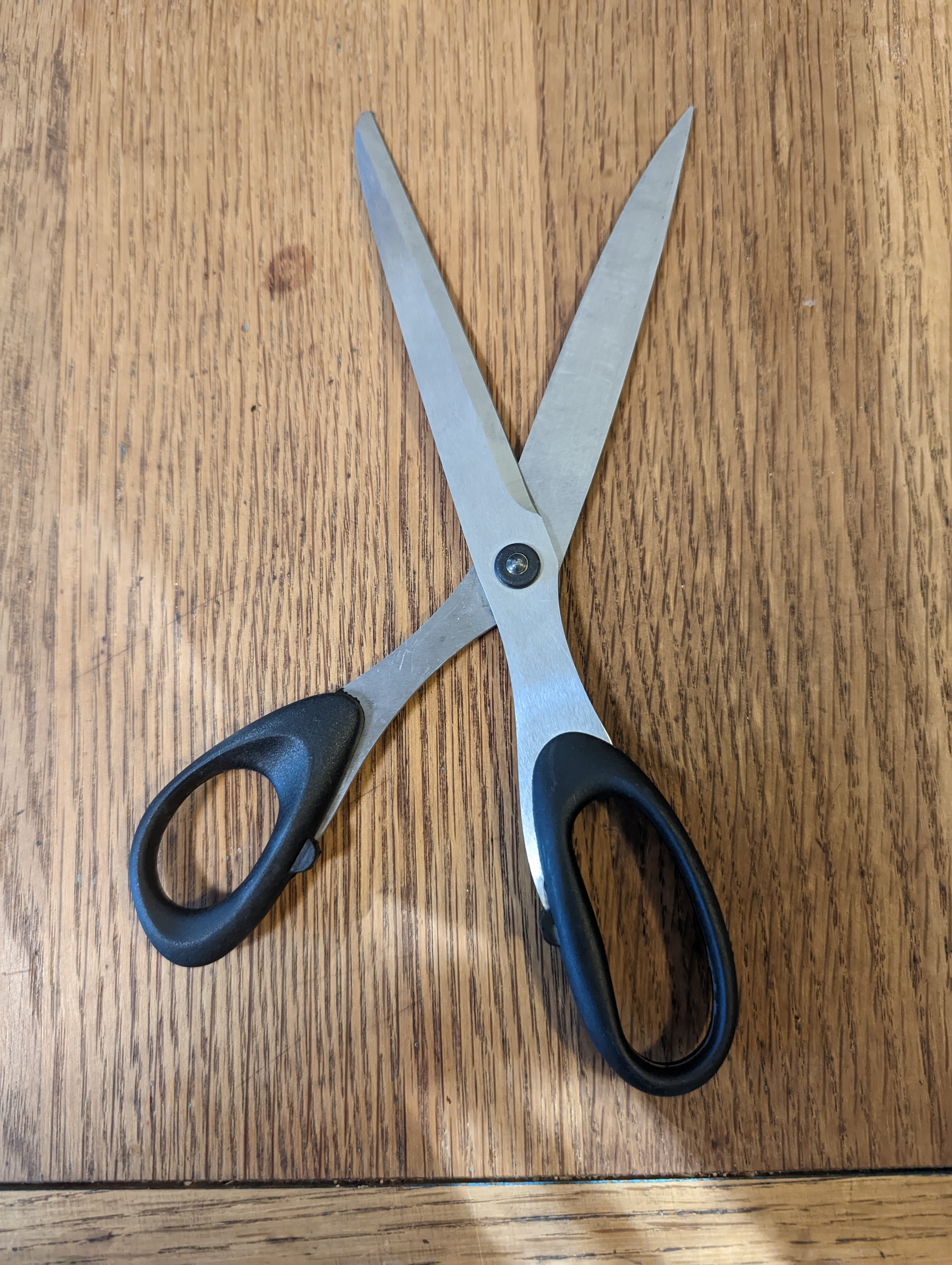

Finally, there can be actual changes to the object. Moving the joints of an objects changes its shape. A flexible or jointed object can be bent into different shapes:
An object's shape can also be modified in a more permanent way, as in this car captured by crownjewel13.
Objects can become dirty and eventually be cleaned. Here's a countertop:

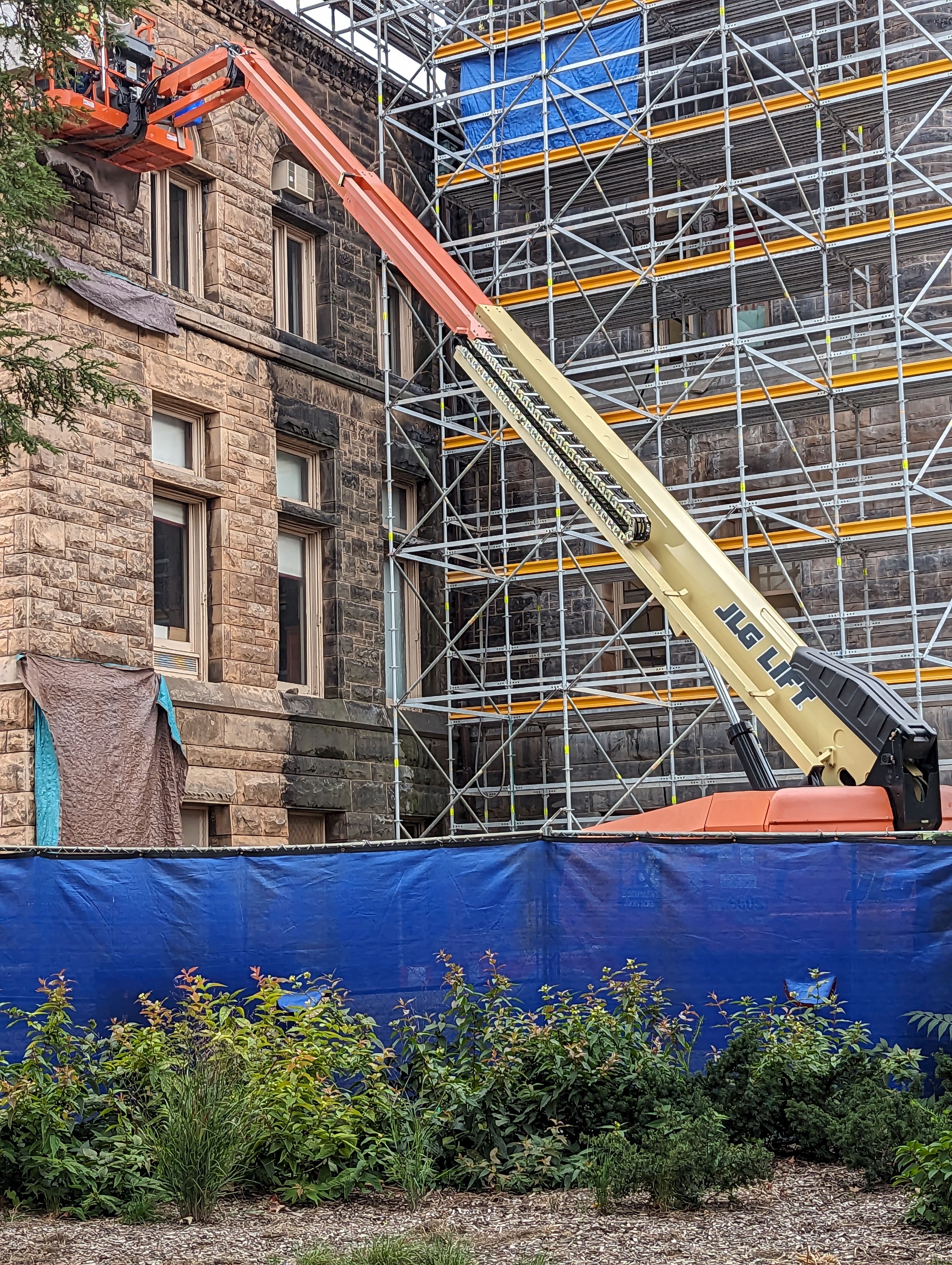

And here is Altgeld Hall halfway through having years of grime scrubbed off.
Finally, natural objects are rarely identical, even when they are nominally of the same type, e.g. the two honeycrisp apples and the selection of garden cucumbers below. (Cucumbers of two varieties tend to hybridize when planted near one another.) Baby animals systematically look different from their parents.
Computer vision can used for four basic types of tasks:
Some predictions require sophisticated understanding of the scene. But, interestingly, others do not. Here's a picture of a tree branch that I'm about to run into.
If an object is moving directly towards you, it expands in your field of view without moving sideways. Moreover, the time to collision is its size in the image times the derivative of the size. Humans and many other animals use this trick to quickly detect potential collisions. Collision avoidance is one of the main roles of the low-resolution peripheral vision in humans.

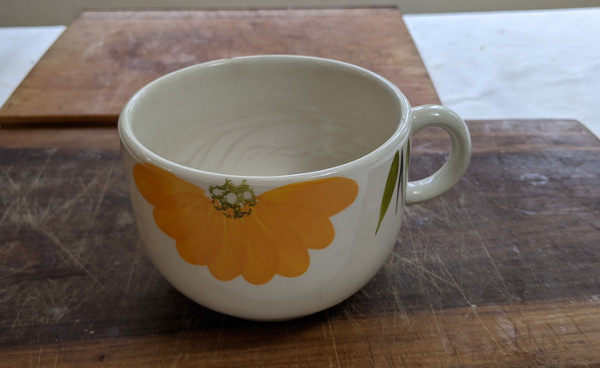

In its most basic form, classification involves coming up with a single label to describe the contents of an image. For example, the lefthand picture below shows an apple; the righthand picture shows a mug.
Using deep neural networks, top-5 error rates for classification on Imagenet (one standard benchmark set of labelled images) have gone from 27% in 2010 to <5% in 2015. Unfortunately, we have a rather poor model of why these networks work well, and how to construct good ones. As we will see later on, neural nets also have a tendency to fail unexpectedly.
When evaluating accuracy numbers, it's important to remember that even a 3% error rate (for example) means that 3 in every 100 images are mislabelled. This can create challenges if downstream processing, or human users, aren't alert to the possibility of mistakes. Also, check exactly what task was used to produce the results: some datasets have highly varied pictures and some have portrait-style pictures where the object is always fully visible and nicely centered. Restricted types of pictures may even be appropriate in some applications, e.g. if the pictures are taken while people walk through a narrow corridor in a particular direction. However, that may mean that a "well tested" algorithm could fail if used in a less restrictive situation.
Recently, classifiers have been extended to work on more complex scenes. This involves two tasks which could theoretically be done as one step but frequently are not. First, we detect objects along with their approximate location in the image, producing a labelled image like the one below. This uses a lot of classifiers and works only on smallish sets of object types (e.g. tens, hundreds).
from Lana Lazebnik

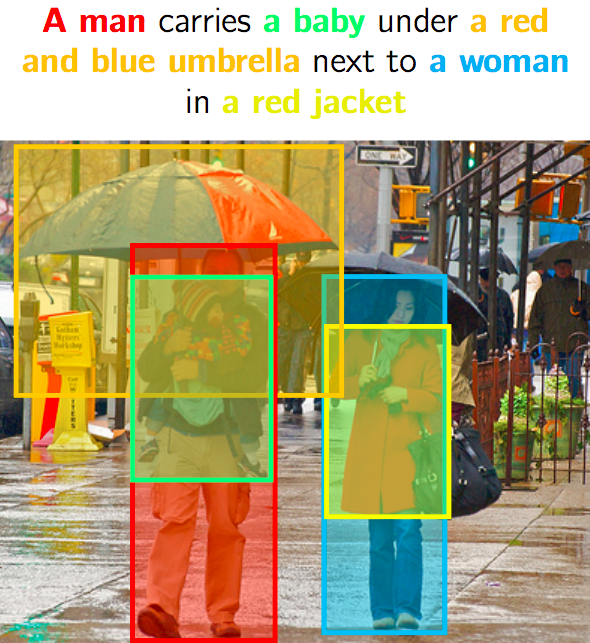

When an object is mentioned in an image caption, similar methods can be used to locate the object in the image. After an object has been detected and approximately located, we can "register" it. Registration starts with an approximate location and determines an object's exact position, pose, orientation.

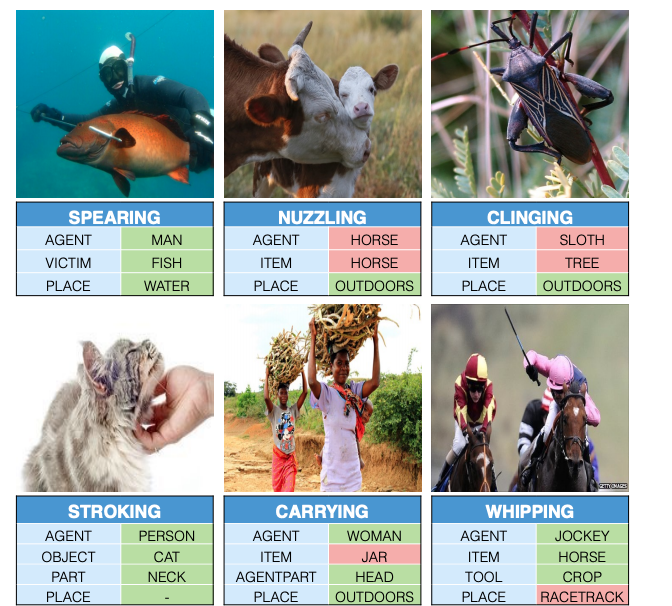

There has also been some success at labelling semantic roles in images, e.g. who is the actor? what are they acting on? what tool are they using? In the examples below, you can see that many roles are successfully recovered (green) but some are not (red). This kind of scene analysis can be used to generate captions for images and answer questions about what's in a picture.
from Yatskar, Zettlemoyer, Farhadi, "Situation Recognition" (2016)
Caption data can be extremely useful for learning to recognize objects. It can also be used to learn what individual people look like. Since pictures often have multiple people in them, it may be necessary to see several pictures with the same name in the captions, to make it possible to securely match names to faces.
It's worth being aware of one limitation: the caption isn't guaranteed to talk about everything in the picture, or what you cared about in the photo. For example, suppose we have a picture of flood waters high up on a sign post. Normally the sign post would be mentioned in the caption. However, if the president is also in the photo, the caption will more likely say something like "Joe Biden visits a flooded neighborhood." Datasets are often selected from sources likely to have appropriate types of captions.

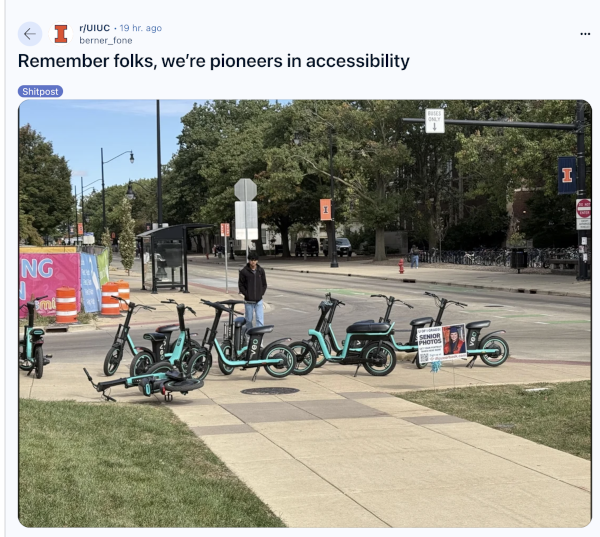

From
berner_fone on the UIUC subreddit,
October 2024

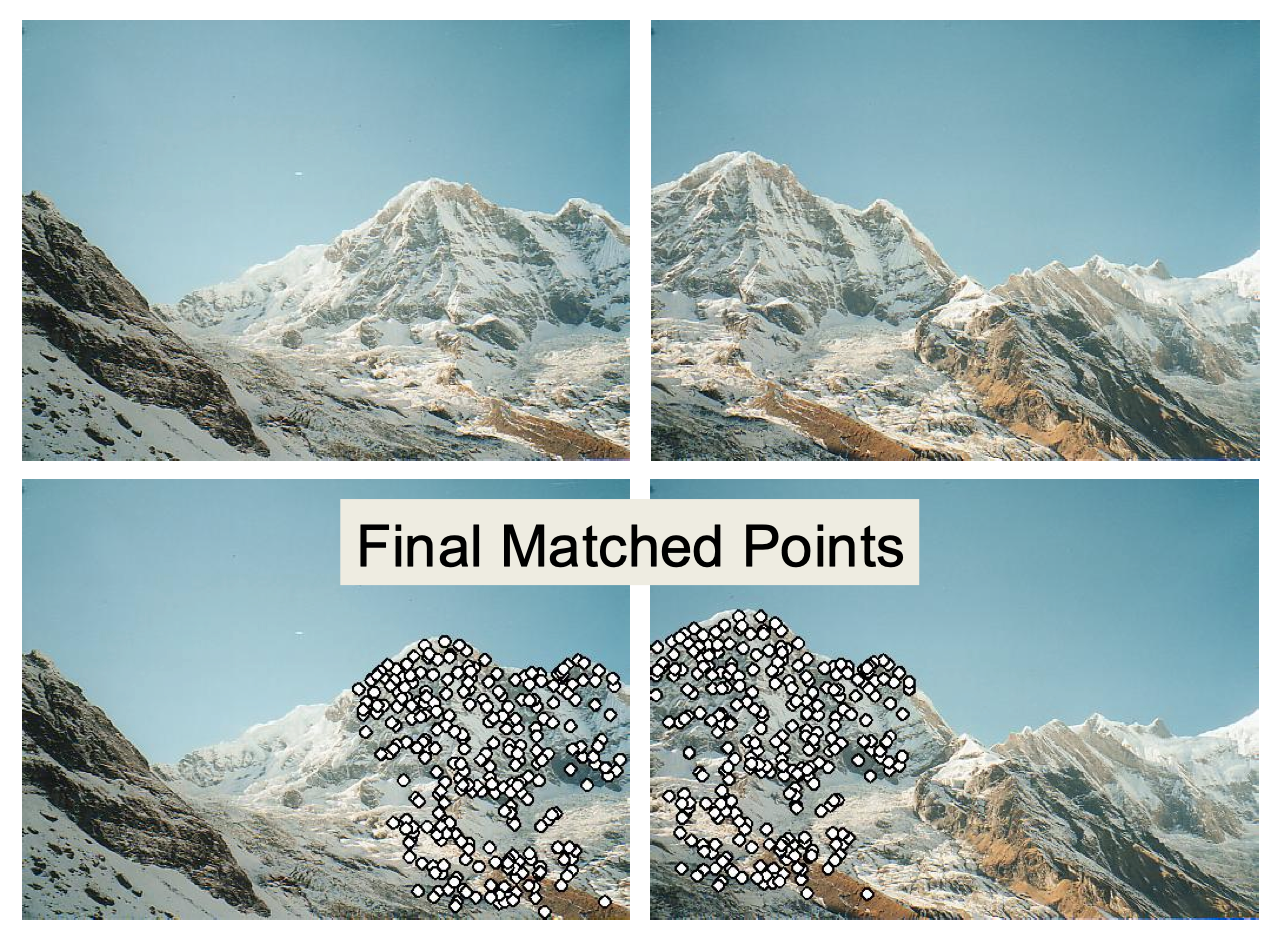

We can also reconstruct aspects of the 3D scene, without necessarily doing a deeper analysis or associating any natural language labels. Suppose, for example, that we have two pictures of a scene, either from a stereo pair of cameras or a moving camera. Notice that distant objects stay in approximately the same image position but closer objects move significantly.
It's fairly common that we know the relative positions of the two cameras. For example, they may both be mounted on the same robot platform. Human eyes are another example. In this situation, it's easy to turn a pair of matching features into a depth estimate. (See diagram below.) These depth estimates are highly accurate for objects near the observer, which conveniently matches what we need for manipulating objects that are within grabbing distance. People who lack stereo vision can get similar information by moving their heads.
from Derek Hoiem

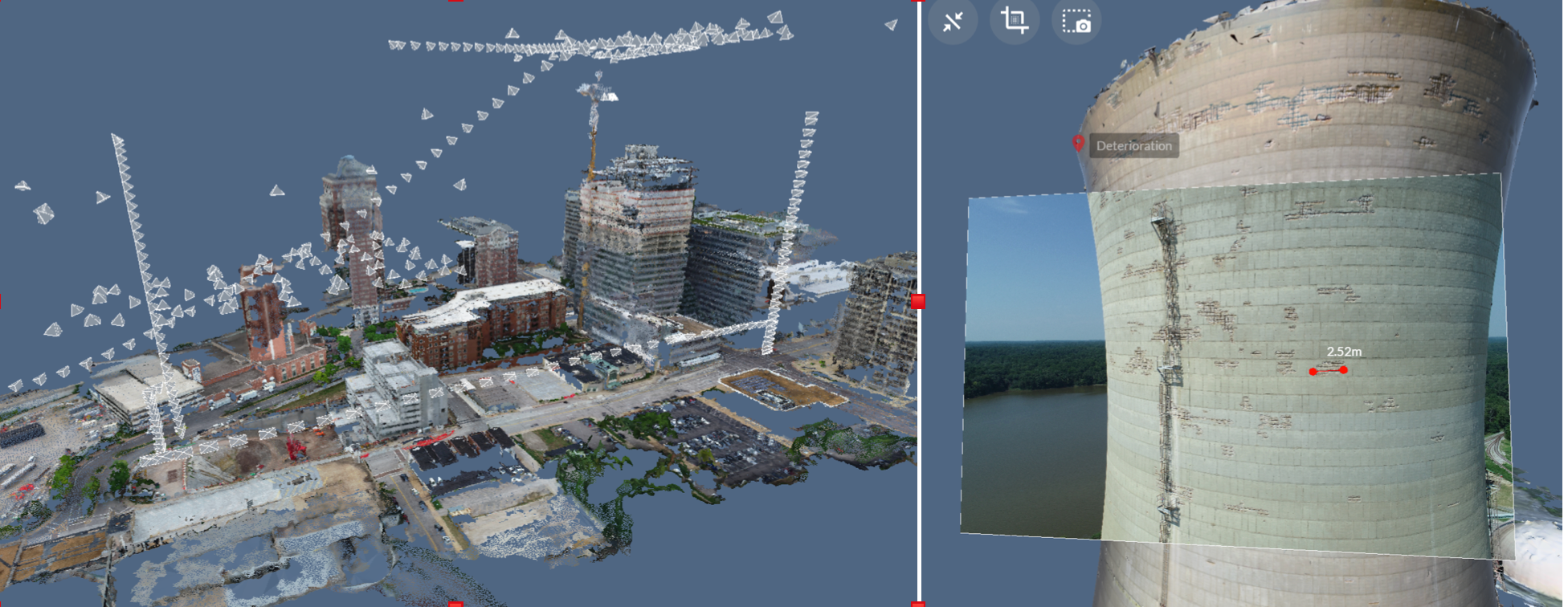

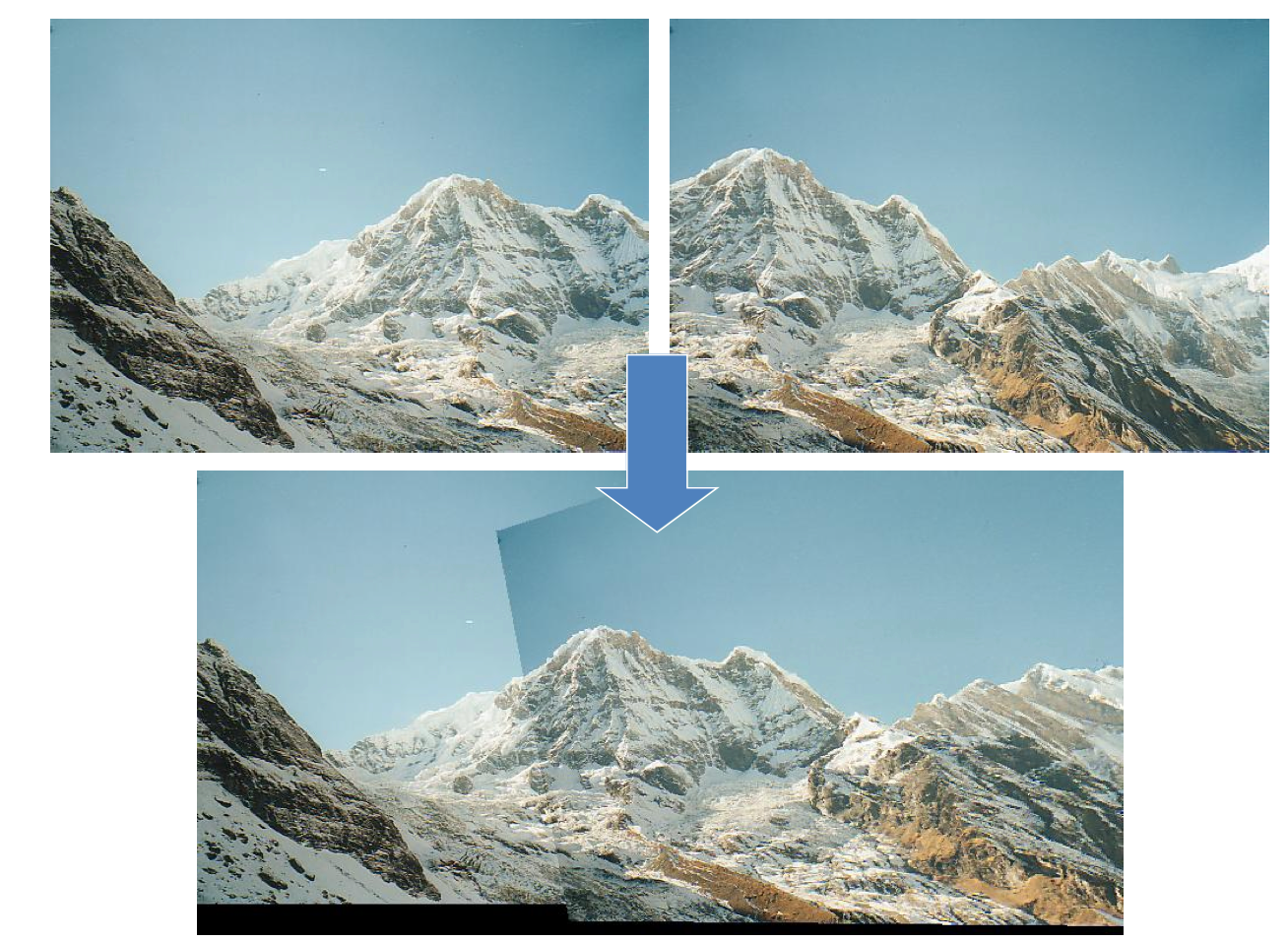

More interestingly, we can reconstruct the camera motion if we have enough matched features. For example, we can extract local features from a pair of images and use these as guidepoints to merge the two images into one. We can reconstruct a 3D scene down to very fine details if we have enough pictures. So we can send a drone into a space that is hazardous or inconvenient for humans to visit, and then direct a human inspector to problematic features (e.g. evidence of cracking in bridge supports).
from Derek Hoiem
from Derek Hoiem
When you have enough training examples, or enough prior knowledge, it's possible to reconstruct 3D information from a single image. For example, a mobile robot might extract the sides of this path, use their vanishing point to guess the tilt, and figure out that the blue object is something that might block its route. In this case, it's a jacket, so some robots might be able to drive over it. But it could have been a large rock.
More interestingly, we can extract a 3D model for indoor scenes using our knowledge of typical room geometry, likely objects, etc. In the picture below, a program has outlined the edges delimiting the floor, ceiling, and walls.

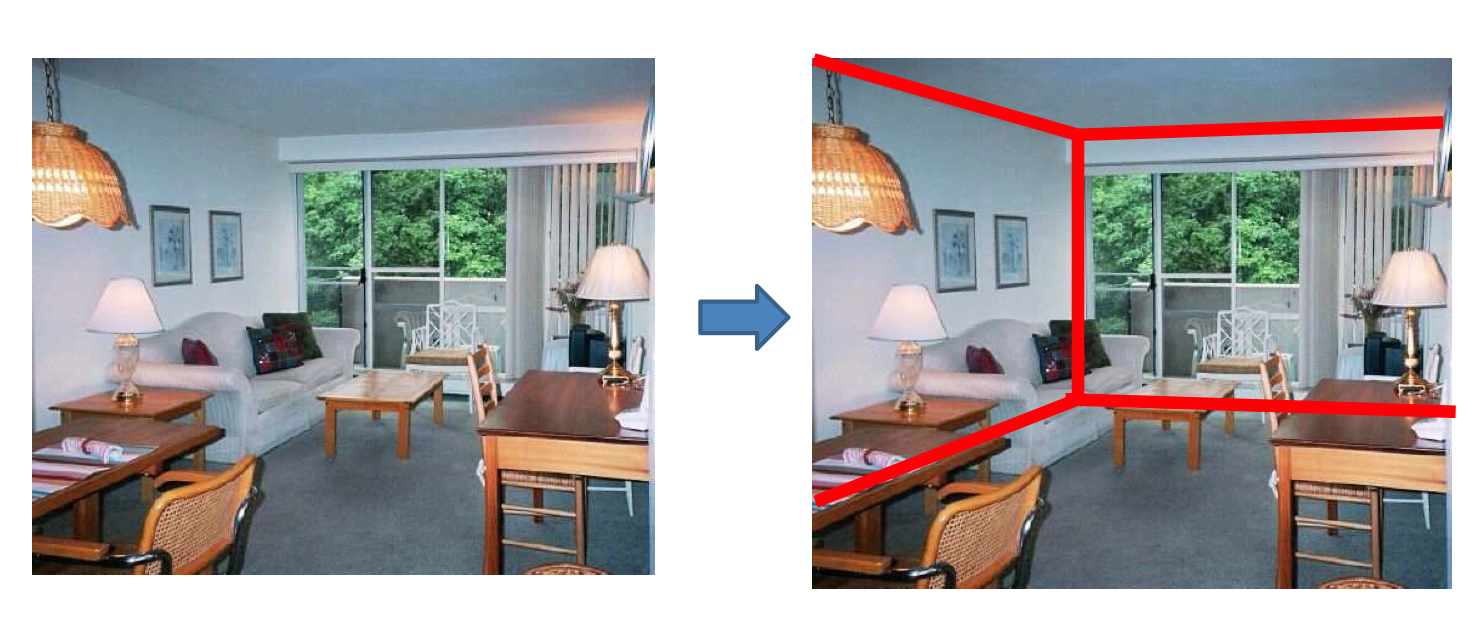

from Derek Hoiem
Relatively recent neural net algorithms can create random images similar to a set of training images. This can be done for fun (e.g. the faces below). A serious application is creating medical images that can be for teaching/research, without giving away private medical data. Can work very well: doctors find it very hard to tell real xray images from fake ones.
from StyleGAN by Karras, Laine, Aila (NVIDIA) 2019

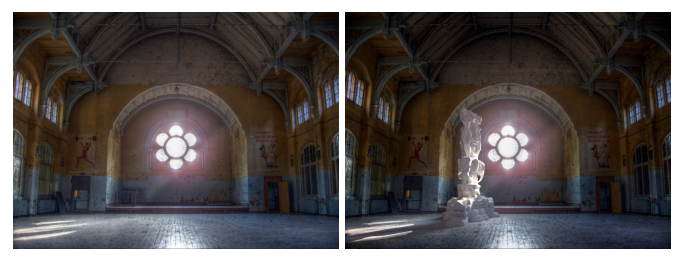

More interestingly, suppose that we have a 3D model for the scene. We now have enough information to add objects to the scene and make the result look right. (See picture below.) The 3D model is required to make objects sit correctly on surfaces (rather than hovering somewhere near them), give the object appropriate shading, and make light from (or bouncing off of) the object affect the shading on nearby objects. We can also remove objects, by making assumptions about what surface(s) probably continue behind them. And we can move objects from one picture into another.
Karsch, Hedau, Forsyth, Hoiem "Rendering Synthetic Objects into
Legacy Photographs" (2011)
(
at ACM digital library)
Here is a cool video showing details of how this algorithm works
A much harder, but potentially more useful, task would be to predict the future from our current observations. For example, what's about to happen to the piece of ginger in the picture below?
What's going to happen here?
Actually, your guess is probably wrong. This rat apparently wasn't hungry enough to pick up the nut.
This truck looks like an immediate danger, until we figure out that it's being towed.
Similarly, we can try to reconstruct the past from evidence left behind. For example, in the photos below, someone evidently spilled some coffee earlier and someone made a very unwise decision driving their car.
Car picture from
warhammer27 on reddit/r/UCI 2024
