Reinforcement Learning - MP7

Due Monday, December 9th, 11:59pm

Starter code

You can download the starter code here: zip, tar

Run the main functions of "tabluar.py" and "dqn.py" to train your RL model. Then run "mp7.py" to run/test the resulting model. Note that "mp7.py" is not that important. It's only there to help you see how your model performs

General guidelines

Basic instructions are similar to previous MPs: For general instructions, see the main MP page and the course policies.

Code will be submitted on gradescope.

The extra credit portion will be submitted separately on gradescope. In your MP average, the extra credit is worth 10% of the value of the regular part of the assignment.

Objective

Create an RL agent to do cool things, like balancing a pole or swinging a multi-pendulum as high as possible.

Our RL agent will be implemented via Q-Learning in the tabular setting and function approximation setting

Environment - CartPole V1

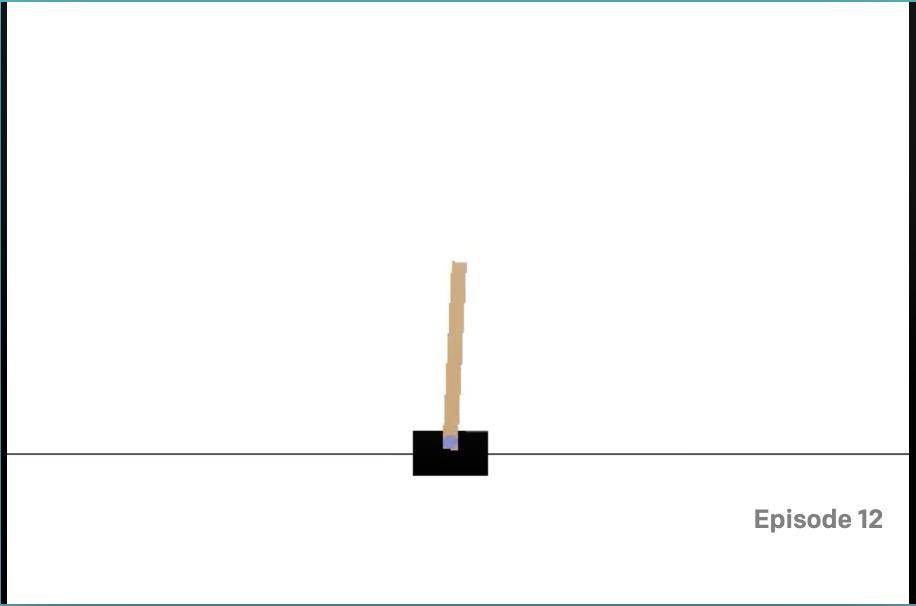

In the CartPole environment, there is a pole standing up on top of a cart. The goal is to balance this pole by moving the cart from side to side to keep the pole balanced upright. A reward of +1 is provided for every timestep that the pole remains upright, and the episode ends when the pole is more than 15 degrees from vertical, or the cart moves more than 2.4 units from the center.

Observation space

Action Space

• 0 - Left
• 1 - Right

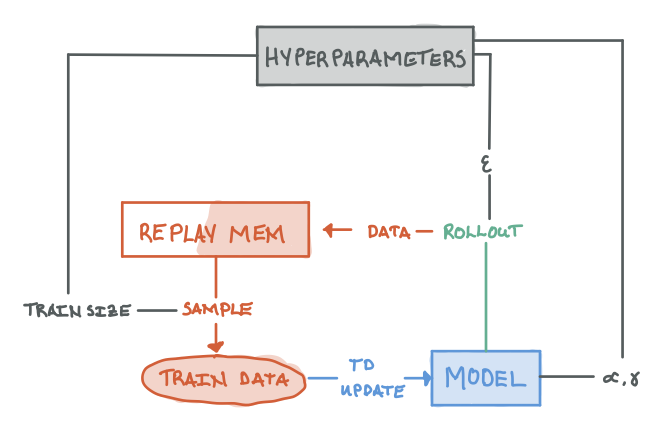

High Level Algorithm

1. Initialize Model
2. Rollout trajectories using current model and store it into the replay memory
3. Sample data from the replay memory to update the model's Q-value estimates
4. Repeat steps 2-4 until convergence

Your Job

Implement the initialization and training code of Q-learning for the tabular setting.

Most of the code is written for you, you just have to fill out some functions

Rollout

Implement the rollout function in utils.py. This function plays a given number of episodes and returns the replay memory and score. The replay memory is a list of (state, action, reward, next_state, done) at each timestep for all episodes, and score is a list of total rewards for each episodes.

We use the replay memory in our train function in utils.py. During training, the agent samples data randomly from the replay memory to reduce the strong temporal relationship between consecutive pair of (state, action, reward, next_state, done).

Tabular Setting

• Implement the following functions of TabQPolicy in tabular.py
  • Initialization __init__: create the table to hold the Q-vals.
  • qvals: given the current state, return the value for each action.
  • td_step: look below for the description of temporal difference learning.
• Tune the discretization in main call of tabular.py
  • The state space for this environment is continuous. We have provided a function for discretizing the state space into bins for you. You just have to choose the granularity of division by tuning the buckets argument. The model takes as input - bins, which denotes the number of distinct bins for each dimension of the state space.

Training: Temporal Difference

You have to implement the td_step function in tabular.py.

The function takes in training data of the form state, action, reward, next_state, terminal.

Recall the TD update for Q-vals is

$Q(s,a) \leftarrow Q(s,a) + \alpha \cdot (\textit{target} - Q(s,a))$

Return the square error of the original q-value estimate, i.e. the square of the difference between that and target.

Hyperparameter Tuning

A large part of this assignment is tuning the hyperparameters to train a good model. See the hyperparameters function in the utils.py script to see what parameters you can control.

Competition

There will also be a competition, where you can submit either your tabular or function approximation model.

Extra Credit: Function Approximation Setting

In this part, you have to create a neural network that takes the state as input, and output the score for each action. The state is no longer discrete as in the tabular setting.

• Implement the following functions of DQNPolicy in dqn.py
  • Initialization __init__: create optimizer and loss
  • qvals: return the Q-vals for each action give the current state
  • td_step: temporal difference learing update
• Implement make_dqn
  • This defines your neural network. You have the creative freedom to make it however you want as long as the returned object is a PyTorch nn.Module.

Submission

For tabular Q learning, submit tabular.py and your trained model tabular.npy on gradescope

If you do the extra credit, submit your dqn.py and the trained model dqn.model to the separate extra credit assignment on gradescope.

Note that you don't need to submit utils.py to the gradescope.

Package Requirements

This assignment requires some Python packages

• gym - RL environment
• numpy - numerical analysis package
• tqdm - progress bars

References

• Gym - A reinforcement library
• PyTorch - A deep learning library
