Vector Edit on Github

The learning objectives for Vector are:

• Implementing a C++ style Vector in C
• Using Dynamic/Heap Memory
• Using malloc(), free(), calloc(), realloc()
• Function Pointers
• OOP in C
• Serializing/Deserializing to/from a File

We suggest you read the following from the wikibook before starting Vector:

• C Programming, Part 1: Introduction
• C Programming, Part 2: Text Input And Output
• C Programming, Part 3: Common Gotchas
• Memory, Part 1: Heap Memory Introduction

You are an intern at Macrohard, where you’ll be writing a text editor and shell for everyone on your team.

These projects will take you several weeks, and your mentor has decided on the following timetable:

• Week A: Vector and Document/Log
• Week B: Text Editor
• Week C: Shell

The Text Editor is a line editor that accepts commands from stdin. Your mentor has decided to abstract away the concept of a Document as a sequence of lines.

The Shell is a terminal. Like all good terminals, your shell will need to remember the commands it has run. Your mentor has decided to abstract this away as a Log.

Your mentor has realized that documents and logs are both just arrays of strings. So, to implement the document and log, your mentor has decided that you will create a Vector to store strings.

However, after hearing tales of your talent, and with vectors being all the rage, other team leads have asked for vectors that they can use in their own projects. One option would be to write a vector for each team. However, being a good programmer, you know that code duplication is bad. Also, you’re a lazy programmer, so you want to write as little code as possible to accomplish everything. You decide to implement a generic vector, something that every team can use with minimal changes.

A vector is an array that grows and shrinks as a user adds and removes items from it. (Since CS 225 was a prerequisite, you probably knew all of that already.) However, your vector will need to be feature-rich enough for someone to easily create a log or document from it, or anything else the other sneaky teams want for their projects.

Your implementation should go in vector.c, which is the only file that will be sent to your team lead for review. As an intern looking to become a full-time employee, you should create test cases in vector_test.c to show you are a responsible programmer. Your mentor has left notes in vector.h guiding your implementation.

In case a fellow employee asks what you learned in CS 225, here’s some review:

• Lectures
• Array Resizing
• Lecture Recording

Since this vector is generic, it will have to call custom constructor and destructor functions when objects are added or removed. (How is this better than a single function which handles all possible types?) Thus, your vector structure will contain pointers to your constructor or destructor routines, and you can initialize the vector by passing pointers to these functions as parameters.

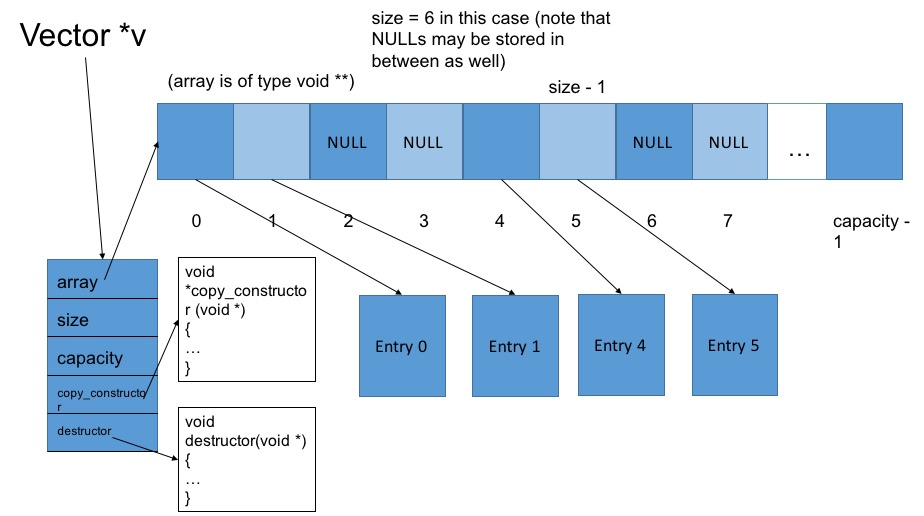

Here’s an illustration:

What you’ll end up with is a useful general-purpose vector, capable of dynamically expanding and shrinking. (No more fixed-sized buffers, guys!)

The document and log are very similar, so your mentor has negotiated with the team lead so you will only have to implement the document. Both the document and log will use your vector to do all the heavy lifting.

Your mentor has provided trivial functions for you that assume a correctly implemented vector. The only file that will be reviewed by your team lead is document.c. Since Macrohard frowns on interns who rely on QAs to catch their mistakes, you are encouraged to write your own testcases in document_test.c. Your mentor has left some notes in document.h.

Since you’re working with files, you should have basic notions of serialization and deserialization. Serialization is the process of converting the state of a data structure or object into a representation that can be stored (in this case, in a file) or transmitted. Deserialization is the reverse process, where a serialized representation is converted into the original data structure or object. These two processes are equal and opposite, and will cancel each other out if sequentially applied on something. That is, deserialize(serialize(x)) == x.

Make sure you’re completely clear on the difference between a vector and a document! Your document uses an underlying vector to represent the state of a file, and each entry in the vector corresponds to a single line in the file. This makes it much easier to manipulate individual lines.

Recall that POSIX defines a line as “A sequence of zero or more non-<newline> characters plus a terminating <newline> character”. When you’re working with the document, be careful how you handle newlines in the files you’re opening. Remember, serialization and deserialization are equal and opposite. Your document already provides an abstraction for lines of text. Do you need to add the newline characters to the strings you store?

Remember, man is man’s best friend. Since you’re working with dynamic memory, there are quite a few functions you should be familiar with before you proceed. malloc(), free(), realloc(), calloc(), memmove() are your friends; don’t shy away!

• $ man 3 malloc
• $ man 3 free
• …there’s a pattern here

Undefined behavior is a scenario or edge case for which there is no documentation describing how the code should react. For example, man pages do not describe what happens when you feed NULL into strcmp(). Your mentor will not answer questions like “What if my user wants an element past the end of the vector?”, because that is undefined behavior.

So, for the entirety of this MP, you should use assert() statements to check that your user is passing valid input to your function before operating on the input. For example, if you were implementing strcmp(const char *s1, const char *s2), then your code might look like this:

#include <assert.h>

strcmp(const char *s1, const char *s2) {
    assert(s1 != NULL && s2 != NULL);
    // Compare the two strings
    .
    .
    .
    return rv;
}

Just to emphasize how important test cases are, this lab spec will repeat itself and remind you that as good programmers, you are expected to write your own test cases for document and vector.

To compile the release version of the code, run:

make clean
make

To compile your code in debug mode, run make debug instead of make.

To test your vector:

./vector_test

or:

./vector_test-debug

To test your document:

./document_test

or:

./document_test-debug

Please fully read details on Academic Integrity . These are shared between all MPs in CS 241.

We will be using Subversion as our hand-in system this semester. Our grading system will checkout your most recent (pre-deadline) commit for grading. Therefore, to hand in your code, all you have to do is commit it to your Subversion repository.

To check out the provided code for vector from the class repository, go to your cs241 directory (the one you checked out for "know your tools") and run:

svn up

If you run ls you will now see a vector folder, where you can find this assignment! To commit your changes (send them to us) type:

svn ci -m "vector submission"

Your repository directory can be viewed from a web browser from the following URL: https://subversion.ews.illinois.edu/svn/fa16-cs241/NETID/vector where NETID is your University NetID. It is important to check that the files you expect to be graded are present and up to date in your SVN copy.
